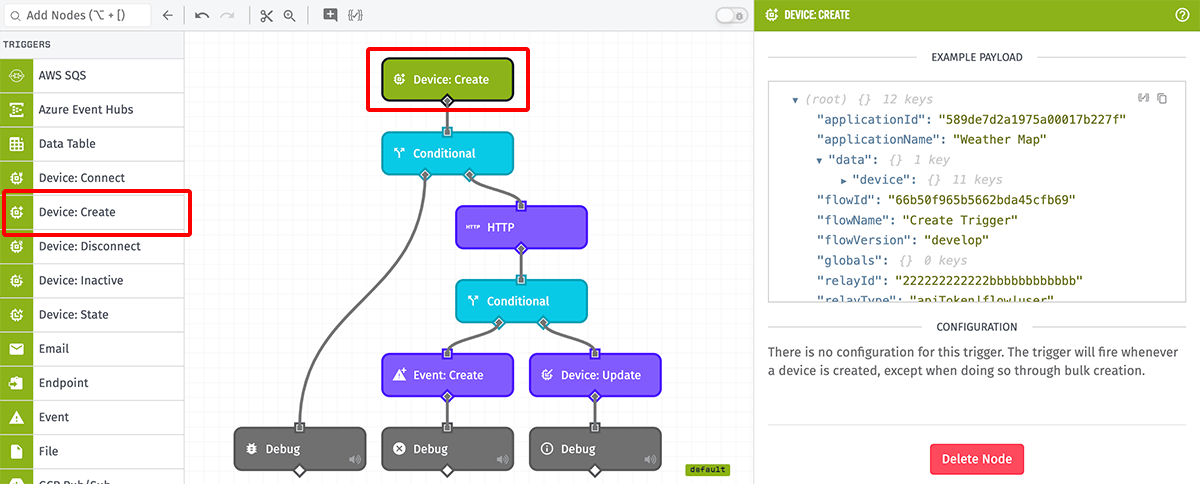

Device: Create Trigger Node

The Device: Create Trigger fires a workflow whenever a device is created within your application.

Node Properties

The trigger does not take any configuration. It will fire for any of the following actions …

• A successful invocation of the Device: Create Node.
• Creating a new device through the user interface.
• Creating a single device from a device recipe.
• Creating a device through the Devices: Post API endpoint.

Bulk Device Creation

The Device: Create Trigger does not fire for bulk creation events, including bulk creation requests that create only one device. This includes:

• Bulk creation from a device recipe in the user interface.
• Invoking the Device Recipe: Bulk Create API endpoint.
• Importing devices into your application, either through the Template Library or through an application import request.

Payload

The payload will include the newly created device object under the device property of the data field. In the general case, a Device: Create Trigger workflow payload will look like the following:

{
  "applicationId": "555555555555eeeeeeeeeeee",
  "applicationName": "My Great Application",
  "data": {
    "device": {
      "_etag": "\"567-SY26IHrVRzUBMUwxnY59Fn6vOvo\"",
      "applicationId": "555555555555eeeeeeeeeeee",
      "attributes": {
        "exampleNumber": {
          "attributeTags": {
            "attrTagKey": "tagValue1"
          },
          "dataType": "number",
          "description": "",
          "name": "exampleNumber"
        },
        "exampleString": {
          "attributeTags": {
            "attrTagKey": "tagValue2"
          },
          "dataType": "string",
          "description": "",
          "name": "exampleString"
        }
      },
      "creationDate": "2018-03-16T18:19:03.376Z",
      "description": "",
      "deviceClass": "standalone",
      "deviceId": "222222222222bbbbbbbbbbbb",
      "id": "222222222222bbbbbbbbbbbb",
      "lastUpdated": "2020-08-26T13:09:11.814Z",
      "name": "My Great Device",
      "tags": {
        "aTagKey": [
          "exampleTagValue"
        ],
        "tagWithMultipleValues": [
          "tagValue",
          "anotherTagValue"
        ]
      }
    }
  },
  "flowId": "333333333333cccccccccccc",
  "flowName": "My Great Workflow",
  "flowVersion": "myFlowVersion",
  "globals": {
    "aJsonGlobal": {
      "key": "value"
    },
    "aNumberGlobal": 42,
    "aStringGlobal": "My value"
  },
  "relayId": "333333333333cccccccccccc",
  "relayType": "apiToken|flow|user",
  "time": Fri Feb 19 2016 17:26:00 GMT-0500 (EST),
  "triggerId": "222222222222bbbbbbbbbbbb",
  "triggerType": "deviceCreate"
}

Payload Consumption

Similar to the Event Trigger and Data Table Trigger, invoking the Device: Create Trigger does not constitute a billable payload - nor does the act of creating a device within your application.

Related Nodes

• Device: Create Node
