Timer Trigger Node

The Timer Trigger will fire a workflow on a scheduled interval.

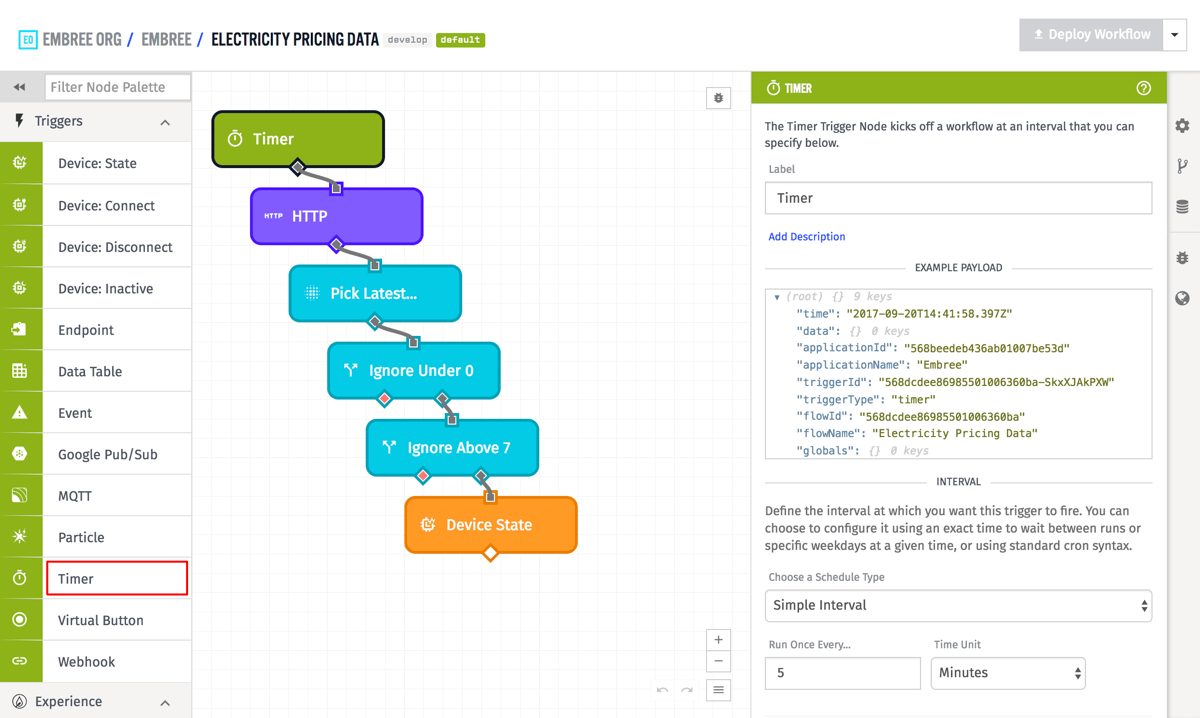

Timer Trigger

Node Properties

The Timer Trigger can be configured in three different ways:

Simple Interval

Configure the timer to fire after a repeating period of time. Choose an amount (a positive number) and a unit.

Application Workflows: The unit can be “Seconds”, “Minutes”, “Hours”, or “Days”. The interval can be any positive number that evaluates to at least 1 second and less than 1 year (fractional intervals are allowed).

Edge Workflows: The unit can be “Milliseconds”, “Seconds”, “Minutes”, “Hours”, or “Days”. The interval can be any positive number that evaluates to at least 100 milliseconds and less than 1 year (fractional intervals are allowed).

For Edge Agent Version 1.12.0 and below, the interval can be any positive number that evaluates to at least 1 second and less than 1 year.

Simple Schedule

Configure the timer to fire based on a simple daily schedule. Select the days of the week, the time of day that the timer should fire, and the time zone of the given time of day.

Advanced

Configure the timer to fire using a valid cron string. The base cron spec is supported, and in addition the non-standard /, @yearly, @monthly, @weekly, @daily, and @hourly syntax is supported. The non-standard L, W, #, ?, @reboot, and @annually syntax is not supported.

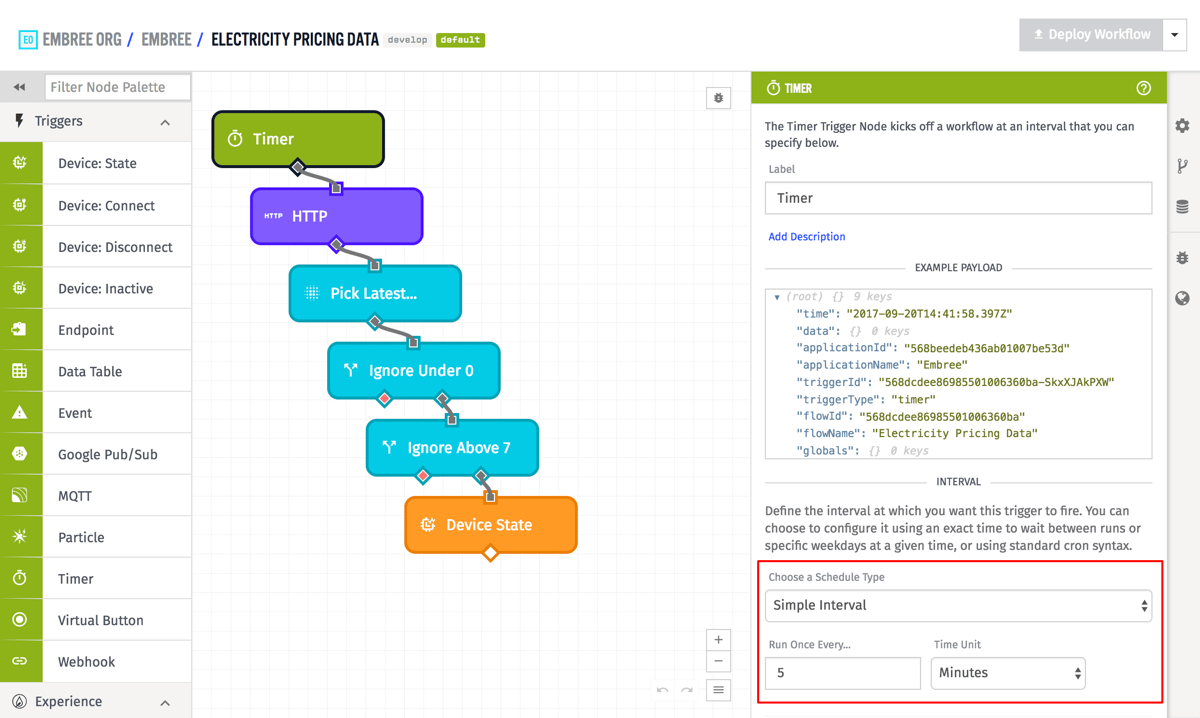

Timer Trigger Config

In the above example, the timer is configured using Simple Interval, and is set so that the timer will fire every 5 minutes.

Payload

Unlike most other triggers, there is no special data included in the payload for a Timer Trigger, so the data field is set to an empty object. The only data relevant to a Timer Trigger is the time at which the trigger fired, and that is just in the standard time field that every trigger payload has. In the general case, a timer workflow payload will look like the following:

{
  "time": <time of the trigger>,
  "data": {},
  "applicationId": <id of the current application>,
  "applicationName": <name of the current application>,
  "triggerId": <id of the Timer Trigger>,
  "triggerType": "timer",
  "flowId": <id of the current workflow>,
  "flowName": <name of the current workflow>,
  "globals": <object of workflow globals>
}

For the example workflow above, a specific payload for a triggered workflow might look like this:

{
  "time": Fri Feb 19 2016 17:26:00 GMT-0500 (EST),
  "data": {},
  "applicationId": "56311a8e51645b2054eb258b",
  "applicationName": "Embree",
  "triggerId": "78fbb050d7f811e5b995b3a5b31df7d8",
  "triggerType": "timer",
  "flowId": "56c8967bb8df0f0100d62912",
  "flowName": "Electricity Pricing Data",
  "globals": {}
}
